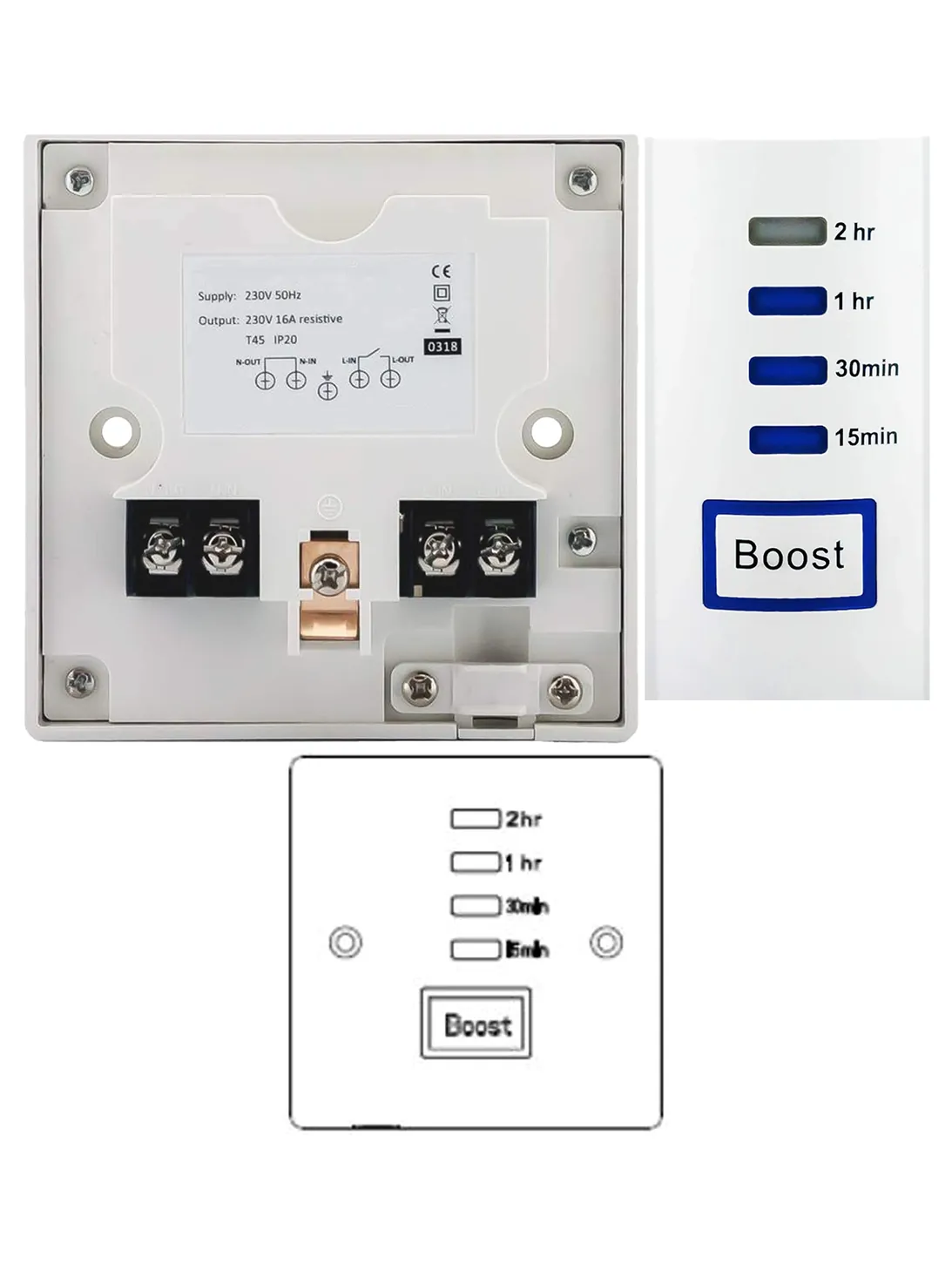

The Universal Immersion Heater Timer lets you add a quick warm‑up boost or a longer energy‑saving run with just a single press. Ideal for immersion water heaters, room heaters and any resistive load up to 16 A, this compact electronic timer (85 × 85 × 30 mm) fits neatly into a surface‑mount or in‑wall pattress box.
How it works
Press the button once to select a 15‑minute boost, twice for 30 minutes, three times for 1 hour, or four times for the full 2‑hour “energy saver” mode. A clear visual indicator shows the chosen setting, so you always know how long the heater will stay on.
Key features
- Four preset delay‑to‑off periods – 15 min, 30 min, 1 hr, 2 hr
- Quartz‑regulated timing for reliable accuracy
- 16 A resistive rating – safe for most domestic heaters
- Four screw‑terminal connections with earth for secure wiring
- IP20, Class II protection – meets EN 60730‑1:2011 and EU directives (LVD, EMC, RoHS)
Installation & power
Designed for fixed‑supply wiring (220‑240 V AC, 50 Hz), the timer mounts in a standard socket box and requires only basic wiring skills. It is not intended for direct switching of fluorescent, HID or LED lighting; use a contactor for those applications.
Whether you need a quick 15‑minute heat boost or want to stretch your heating budget with a two‑hour run, this universal timer delivers simple control and peace of mind. Search terms like immersion heater timer, boost timer for heaters, and energy saver timer will guide you right to this reliable solution.
