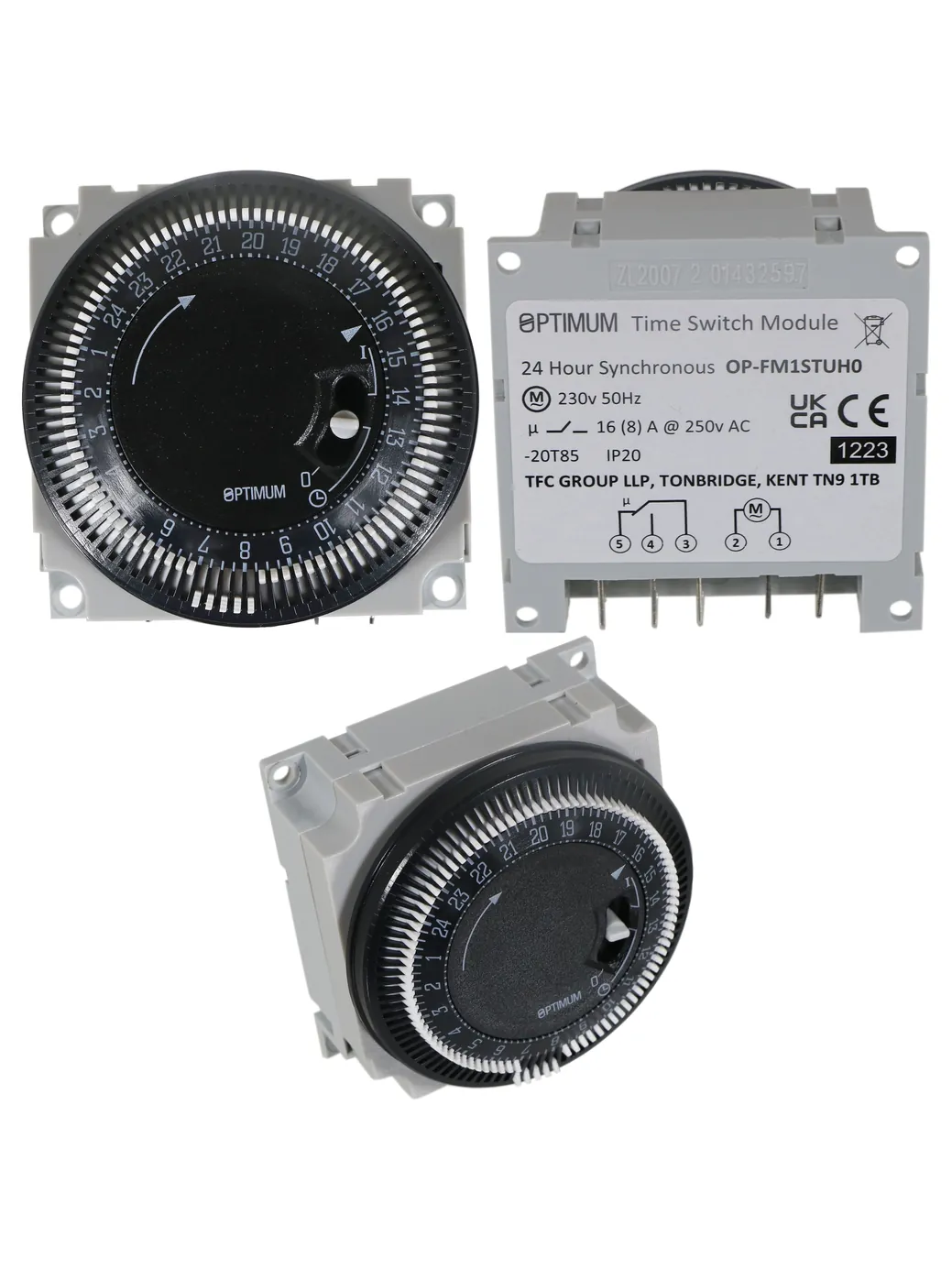

The OP‑FM1STUH0 Industrial 24‑Hour Synchronous Timer delivers reliable, day‑long control for lighting, HVAC, or any equipment that needs precise on/off scheduling. Designed as a captive‑tappet module, each tappet advances in 15‑minute steps, giving you fine‑tuned timing without complex programming.
Key benefits
– 24‑hour dial – set a full‑day cycle in one turn; the timer stays synchronized to the mains, typically staying within ±2.5 seconds per day.
– Manual override – choose Timed, Fix On or Fix Off instantly, perfect for maintenance or emergency situations.
– Compact sub‑panel mounting – fits neatly into control cabinets (60 × 60 × 32 mm) and weighs only 110 g.
Technical highlights
- Load capacity: 16 A resistive, 8 A inductive (cos Ø 0.6)
- Minimum load: 100 mA @ 20 V AC/DC
- Power use: 1 VA at 230 V, 50 Hz
- Temperature range: –20 °C to +85 °C
- Connections: five 6.3 mm DIN terminals
Because it operates voltage‑free, the timer can switch a changeover relay safely and efficiently. Whether you’re automating industrial lighting, controlling pump cycles, or managing ventilation fans, the OP‑FM1STUH0 offers a rugged, easy‑to‑use solution that meets IEC standards and delivers consistent performance day after day.
Keywords: industrial timer, 24‑hour synchronous timer, manual override timer, captive tappet timer, sub‑panel timer module.
