A reliable 22 mm motorised 2‑port zone valve designed for Honeywell V4043 boiler heating systems. This premium‑quality, spring‑return valve comes with built‑in 22 mm compression fittings and an auxiliary switch, making it ideal for general‑purpose flow control in central‑heating or hot‑water circuits.
When wired to a room thermostat, cylinder thermostat and programmer, the valve automatically directs water from the boiler to either the heating loop or the hot‑water tank. The synchronous motor drive provides smooth operation while the spring‑return mechanism guarantees safe closure if power is lost.
Key features
– Supply voltage: 220‑240 V AC, 50 Hz
– Power consumption: 6 W
– Operating temperature: +5 °C to +88 °C
– Maximum differential pressure: ≤ 1 bar (static pressure up to 10 bar)
– Fluid temperature rating: 100 °C; ambient up to 52 °C
– Auxiliary switch: 3 A resistive rating with integrated manual lever for commissioning
– Cable length: 1 m (colour‑coded wiring for easy connection)

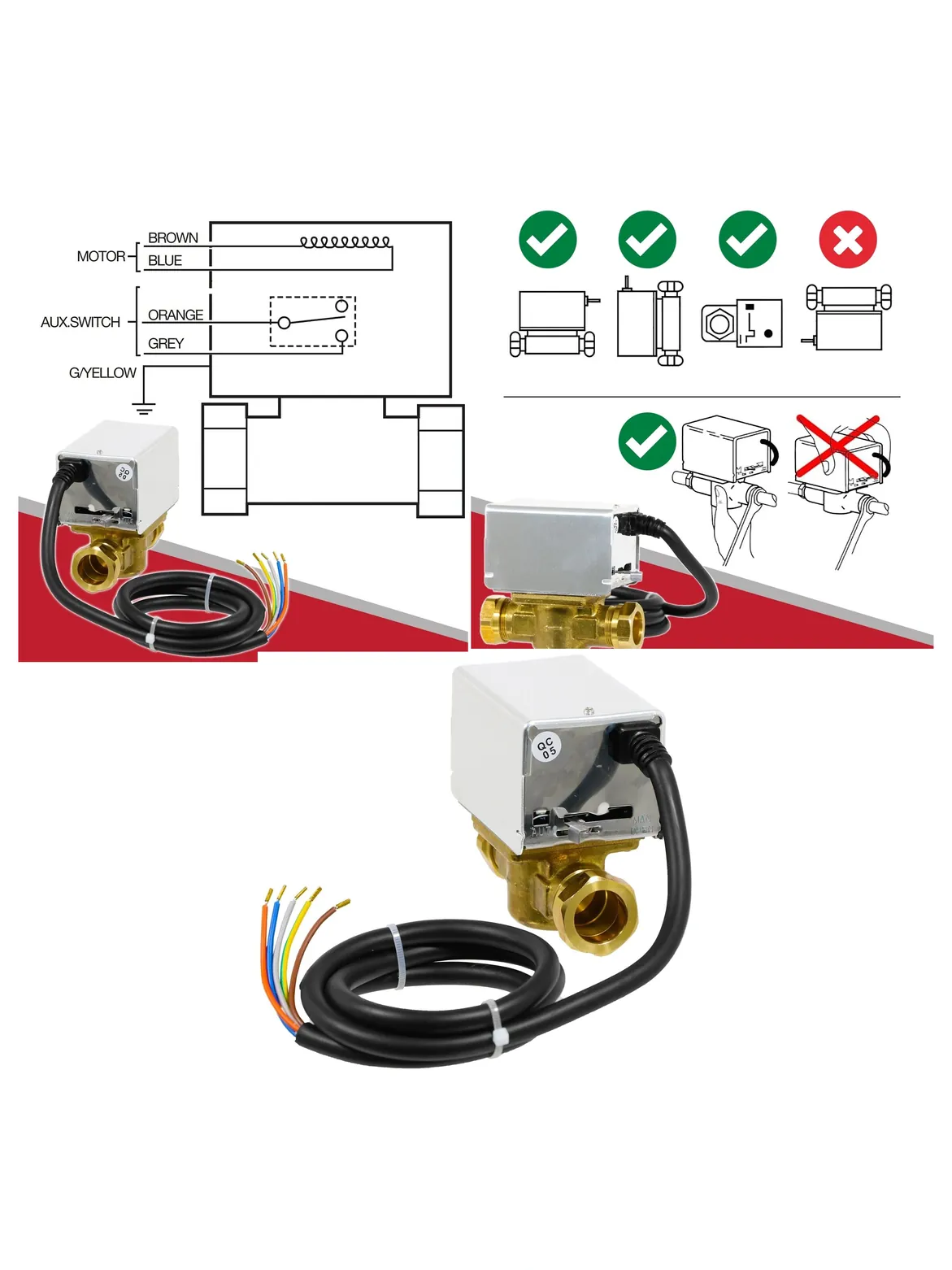

– Installation: Includes detailed instructions; valve held by wrench flats – never use the actuator for leverage.
The valve arrives boxed and ready for installation by a qualified electrician. It is fully compatible with Honeywell models V4043, V4043H and H1056 (non‑OEM part). Upgrade your heating system with a dependable zone valve that balances efficiency and safety.
